Baoji Lyne Metals Co.,Ltd

Non-ferrous metal Titanium,Nickel,zirconium alloy material and machined parts supplier

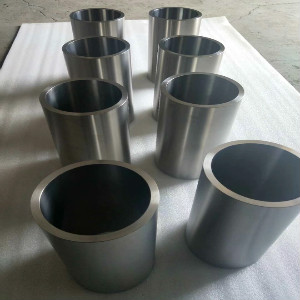

Forged ASTM B381 Gr7 Titanium tube

Product Name:

Forged ASTM B381 Gr7 Titanium tube

No. :

Product Description:

Forged ASTM B381 Gr7 Titanium tube

Place of Origin:Shaanxi, China (Mainland)
Material:Gr7
Outer Diameter:3-2000mm
Standard:ASTM B381, ASTM ASME AMS DIN ISO JIS
Surface:Bright Finished
Processed way1:Titanium forging ring or Titanium Rolled ring
Quality Control:Ultrasonic testing
Shape:round

Grade	Tensile strength Rm/MPa(>=)	Yield strength Rp0.2(MPa)	Elongation A4D(%)	Reduction of area Z(%)
Gr1	240	138	24	30
Gr2	345	275	20	30
Gr3	450	380	18	30
Gr4	550	483	15	25
Gr5	895	828	10	25

Product Description

Dimension	OD(Max 6000mm)×ID(Max 5900mm)×L(max length 1000mm)
Titanium Grade	Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23
Certification	ISO 9001:2008 & Gold suppier on ALIBABA, Material Mill Test Report
Standard	ASTM B381, ASME SB381, AMS, MIL, DIN, BS, JIS, GB/T, ISO, etc.
Specification	Customized as request
Process	Forged , Rolling , Grinding
Type	Including titanium seamless rolled rings, forged rings, and casted rings The process for seamless rolled forged rings involves cutting a hole out of the forging material and rolling it into a thin ring. The rolled forged rings offer concentrically improved rings with smooth surfaces as compared to plate burn-outs, or butt welded rings
Application	1. Electroplating; 2. Chemical engineering & Petrochemical technology; 3. Medical
Density/Orgin country	4.51g/cm3 / Baoji,shaanxi province
