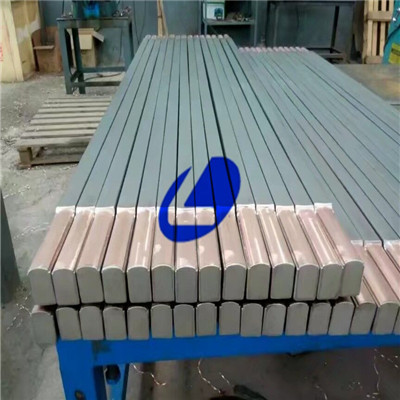

Titanium clad copper bar

Definition

Just as its name implies, cover a layer of titanium on copper bar, that can ensure the coppers conductivity, can protect the cooper keep away the corrosion, also can reduce the pollution of the electroplating and electrolytic solution.

Technology

Explosion Rolling,

MPA

130Mpa

Fit Rate

≥98%

Material

Copper inside , Gr1 titanium as the outside material

Titanium Grade

Gr1

Standard

ASTMB, GB/T 12769 ,etc

Specification

Round:

Dia: 6~45mm, L:≥4m, titanium thickness: 0.7~2.5mm

Square:

Side length:24x24mm, titanium thickness:0.7~2.5mm

Side length:27x27mm, titanium thickness:0.7~2.5mm

Side length:29x29mm, titanium thickness:0.7~2.5mm

Side length:32x32mm, titanium thickness:0.7~2.5mm

Drum:

Dia:27mm, Side length:14, titanium thickness:0.7~2.5mm

Dia:29mm, Side length:14, titanium thickness:0.7~2.5mm

Dia:32mm, Side length:14, titanium thickness:0.7~2.5mm

Or according to clients demand

Shape

Round, flat, square, drum, rectangle, installed and welded of different geometries

Or according to clients demand

State

 Y or R

Features

High conductivity, anti-corrosion toughness, light weight, acid and alkali resistance, etc.

Applications

As the rack in the industry of Electroplating, electrolysis, electro position, wet metallurgy, hydrometallurgy, etc

Package

Plastic as inside, plywood case as outside, or according to clients demand
