Nickel 201 Fittings
Product Name:
Nickel 201 Fittings
No. :
4
:
:

Product Description:

 Nickel 201 pipe fittings

1.Description

Product Name

alloy elbow ;tee; reducer ; cap ;Stub end ,Flange etc

Material

Nickel 200/Nickel 201

Size

Size 1/4" to 48"  Outside Diameter 13.7 mm to 1219 mm

Standard

ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25

Certificates

 ISO 9001:2008

Wall thickness

SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS

Surface Treatment

Polishing,pickly

Marking

wooden case & pallet

Pipe Ends

Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)

Pipe Length

1. Single Random Length and double Random Length.

2. SRL:3M-5.8M  DRL:10-11.8M or As clients requested length

3. fixed length(5.8m, 6m, 12m)

Packaging

Loose package; Packaged in bundles(2Ton Max);  bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.

Test

Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.

Application

liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless tubes for petroleum cracking; oil pipe; gas pipe.

Advantages

1.Reasonable price with excellent quality

2.Abundant stock and prompt delivery

3.Rich supply and export experience, sincere service

4.Reliable forwarder, 2-hour away from port.

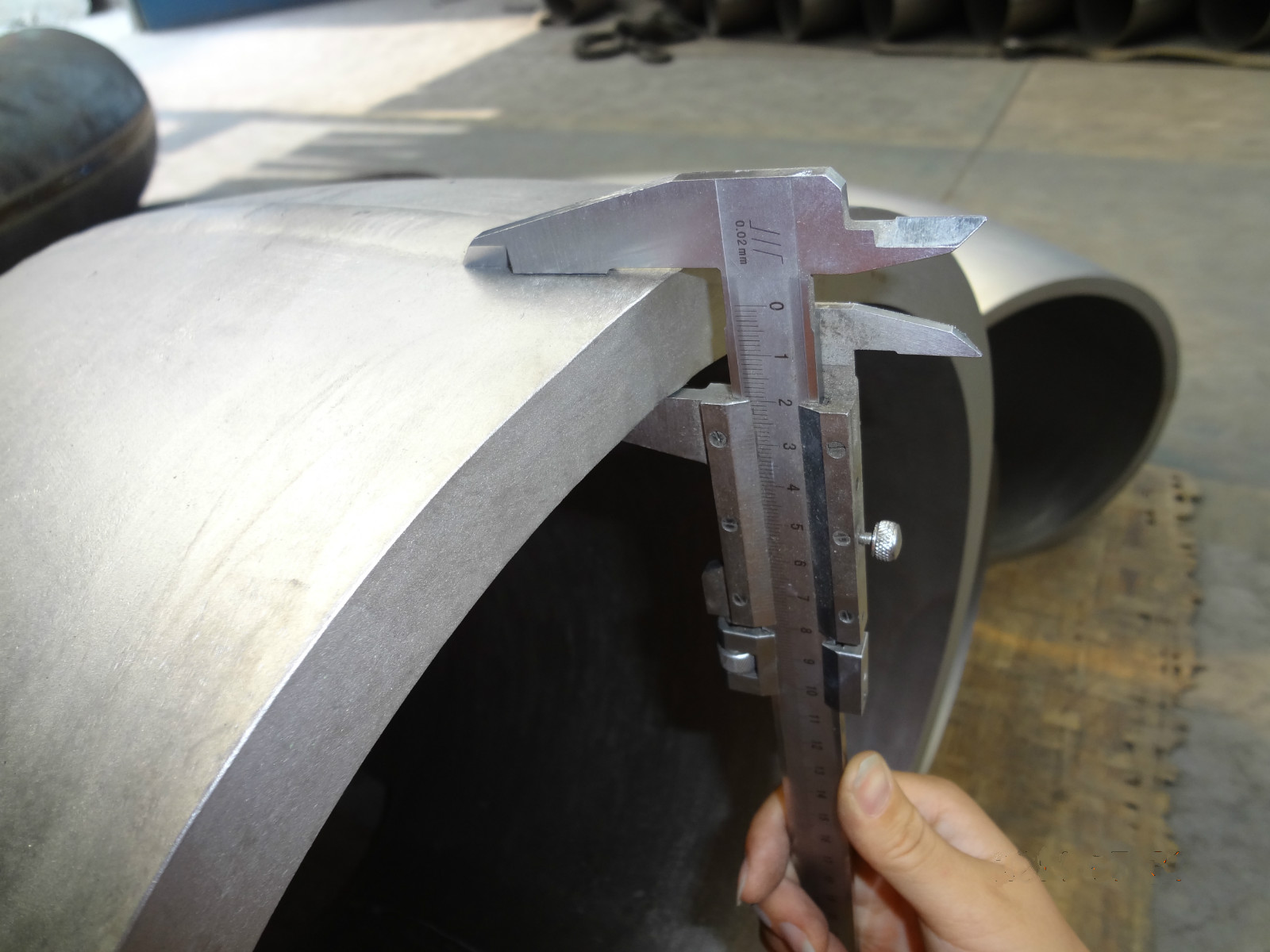

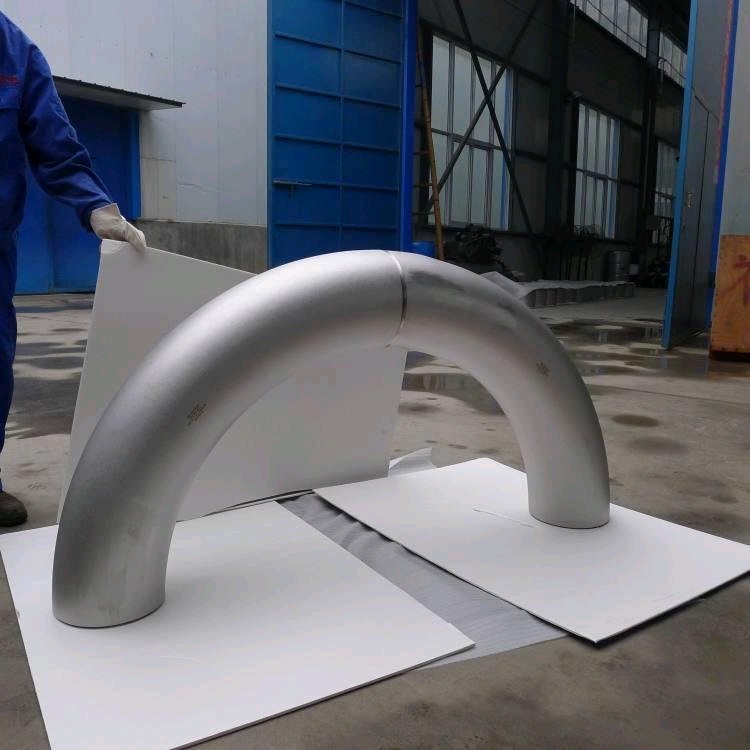

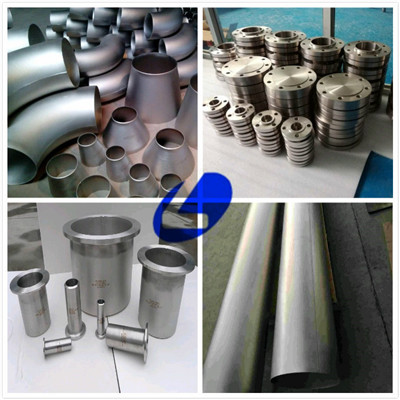

2.Items picture.
