Titanium Coil tube
Product Name:
Titanium Coil tube
No. :
7
:
:

Product Description:

 Titanium coil tube

1)Grade:Gr1,Gr2,Gr3,Gr4,Gr5
2)Standard:ASTM B337,ASTM B338,ASTM B861
3)Offer small order
4)Enough stock,fast delivery

1)Descriptions:

Standard:ASTM B337,ASTM SB338,ASTM B861

Material:Pure titanium or alloy titanium.

Applications:For heater exchanger,condenser etc.

Features:Low density,high specific strength,high corrosion resistance,good thermal stability and excellent thermal conductivity etc.

Quality and test: Tests and inspections ensure the materials meet destructive and non-destructive test according to industry and customer specifications.

Specifications:Like in table 1,table 2,table 3

Table 1  Cold rolled seamless alloy/unalloy titanium tubes

Grade

status

Outer

Diameter

/mm

Wall thickness/mm

Gr1

Gr2

Gr3

Gr4

Gr7

Gr11

Gr12

Annealed

(M)

>10~15

0.5,0.6,0.8,1.0,1.25,1.5,2.0

>15~20

0.6, 0.8,1.0,1.25,1.5,2.0,2.5

>20~30

0.6, 0.8,1.0,1.25,1.5,2.0,2.5

>30~40

1.25,1.5,2.0,2.5,3.0

>40~50

1.25,1.5,2.0,2.5,3.0,3.5

>50~60

1.5,2.0,2.5,3.0,3.5,4.0,

>60~80

2.0,2.5,3.0,3.5,4.0,4.5



Table 2  Welded tubes

Grade

status

Outer

Diameter

/mm

Wall thickness/mm

Gr1

Gr2

Gr3

Gr4

Gr7

Gr11

Gr12

Annealed

(M)

16

0.5,0.6,0.8,1.0

19

0.5,0.6,0.8,1.0,1.25

25 27

0.5,0.6,0.8,1.0,1.25,1.5

31 32 33

0.8,1.0,1.25,1.5,2.0

38

1.5,2.0,2.5

50

2.0,2.5

63

2.0,2.5

Table 3  Welded-rolled tube

Grade

Status

Outer

Diameter

/mm

Wall thickness/mm

Gr1

Gr2

Gr3

Gr4

Gr7

Gr11

Gr12

Annealed

(M)

6~10

0.5,0.6,0.8,1.0,1.25

>10~15

0.5,0.6,0.8,1.0,1.25,1.5

>15~30

0.5,0.6,0.8,1.0,1.25,1.5,2.0

2)Length:like in the Table 4 and Table 5.

Table 4  Length of the seamless and welded-rolled tubes

Item

Seamless tubes/mm

Welded-rolled tubes

OD<=15

OD>15

Wall thickness/mm

Wall<=2.0

Wall>2.0~4.5

0.5~0.8

>0.8~2.0

Length

500~4000

500~9000

500~6000

500~8000

500~5000

Notes:Other length will be available.

Table 5  Length of the welded tubes

Item

Welded tubes/mm

Wall 0.5~1.25

Wall >1.25~2.0

Wall >2.0~2.5

Length

500~15000

500~6000

500~4000

Notes:Other length will be available.

3)Tolerance:

Outer diameter/mm

OD tolerance/mm

Wall tolerance/mm

6~25

+/-0.10





+/-10%

>25~38

+/-0.13

>38~50

+/-0.15

>50~60

+/-0.18

>60~80

+/-0.25

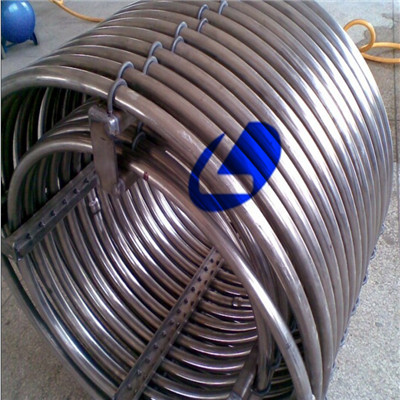

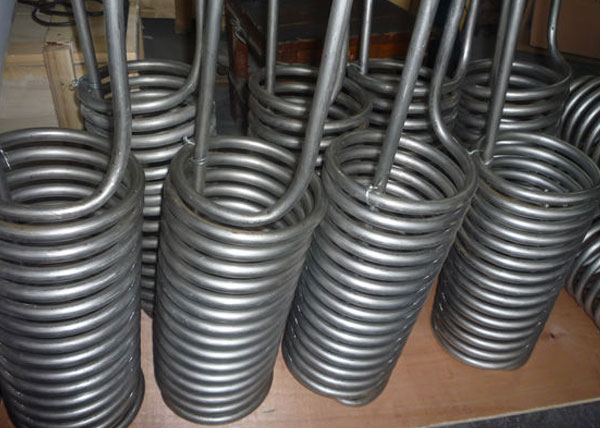

4)Pictures:
